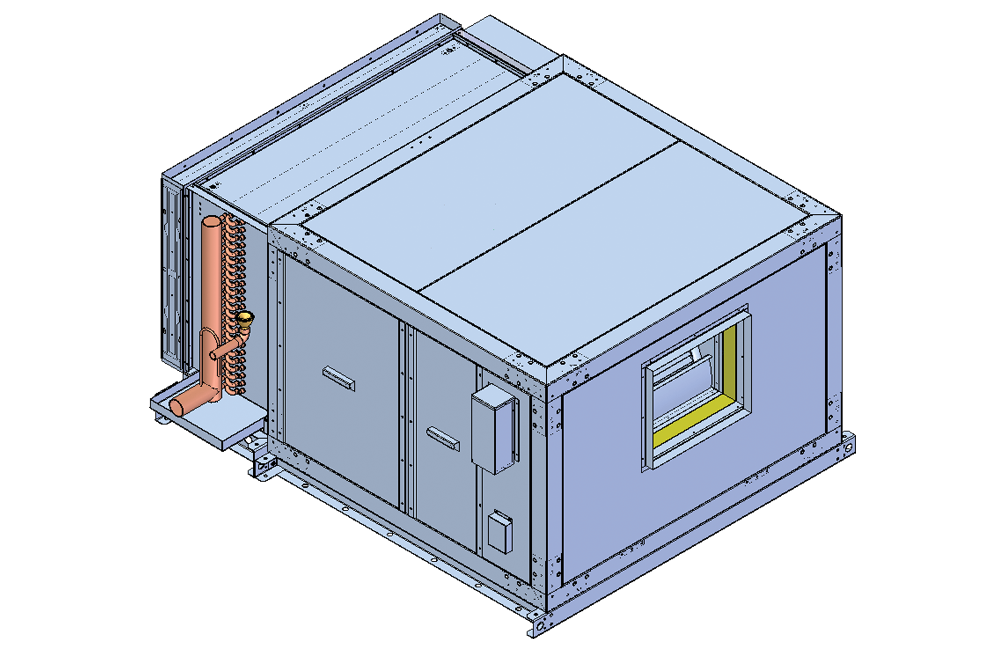

BAP – Horizontal Product Coolers

This flexible product cooler can be used in any number of indoor applications ranging from low temperature freezers to ripening rooms.

Manuals & Info

Product Manuals & Specifications
Product Manual
*Please contact your local sales representative*
All Product Guide - English
All Product Guide - Français
Air Handlers Sell Sheet - English
Search for BAP Parts In The Service Parts Database
Overview

Completely Redesigned.Air Defrost for Applications 35°F (1.6 °C) (Electric and Hot Gas Defrost Models Optional). Up to 30 Tons Nominal Capacity.

Features/Options
Features
  • Indoor Applications Only
  • Large Face Area Centrifugal Fan
  • “Bolt-On” Coil for Maximum Capacity in Minimum Space
  • Single Wall Heavy Gauge Galvanized Cabinet
  • Full Size Access Doors for Easy Maintenance
  • Efficient Forward Curved Blower
  • 10 Models
  • Up to 6” Total Static Pressure
  • Up to 44,000 CFM
  • Internally Mounted Motor Design
  • Horizontal and Vertical Air Discharge
  • External Electrical Box Mounted to Cabinet
  • Extended Grease Lines with External Access
Available Options
  • Double Wall Cabinet with 2” Mineral Wool Insulation
  • Internal Vibration Isolators
  • Airfoil (Up to 8” Total Static Pressure)
  • Disconnect Switch
  • Flat Filter
  • Angle Filters
Certification
ULC
Specifications
Application
  • Air Defrost for Applications 35°F (1.6 °C) (Electric and Hot Gas Defrost Models Optional).
Capacity
  • Up to 30 Tons Nominal Capacity.
Electrical
115/1/60208-230/1/60208-230/3/60460/3/60575/3/60
