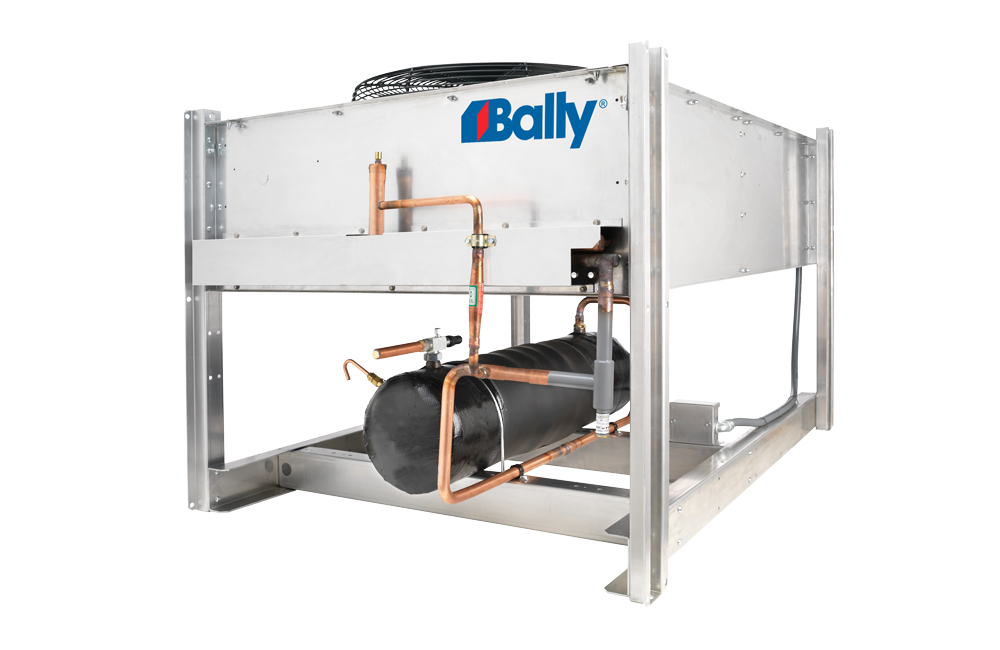

BCS – Small Air Cooled Condensers

Compact size, with choice of Horizontal or vertical air discharge, provides installation flexibility.

Manuals & Info

Product Manuals & Specifications

DISCONTINUED MODELS

RELATED SALES MATERIAL

ADDITIONAL LINKS

Overview

Wide range of options available including mounting legs, receiver kits with or without heater and insulation and numerous control options.

Internally enhanced tube and fin design.
Energy efficient fan motors.
Available standard in the horizontal Airflow configuration. Easily convertible to vertical airflow configuration by mounting 4 optional mounting legs.
Optional factory mounted receiver kits available on vertical airflow models or shipped loose kits for horizontal airflow models, both with or without heater and insulation. (Base frame is required to factory mount receiver)
Various control options

Available features and Technology

Features/Options

Features

Available Options

Optional features (Factory Mounted)

Optional leg kits for horizontal and vertical configurations
Variable Speed EC Motor which provides optimum efficiency and sound levels
Multiple Refrigeration Circuits
Ambient or Pressure Fan Cycling Control with Contactor
Variable speed motor with controller for header fan motor
Non-Fused Disconnect
EC motors
Individual Fan Motor Fusing
Receiver with or without Heater and Insulation (base frame is required to factory mount receiver)
Adjustable Flooded Head Pressure Control (Factory mounted if ordered with receiver option)
3 fan models only available with 3 phase power
Optional fin materials
Optional coil coating

Certification

ULC

Specifications

Application

Capacity

Electrical

200-220/1/50200-220/3/50208-230/1/60208-230/3/60380/3/50460/3/60575/3/60
